Atos hydraulic valves Available for immediate delivery. Daily shipments to over 80 countries

  • Official Atos distributor and authorised Service Center since 2006
  • Directional, proportional and modular valves usually in stock
  • Warranty up to 12 months
  • Daily shipments to more than 80 countries
06–32ISO 4401 sizes of on-off directional valves
420 barmax pressure (DHEP and DKEP directional valves)
80 l/minmax flow DHE, size 06
1,000 l/minmax flow DPHE, size 32
1,600 l/minmax flow DPZO-T proportional valves, size 32
350 barmax pressure modular valves HMP, HG, HQ, HR (size 06)

Prefer to talk to a technician? +39 0331 772410 · info@interfluid.net

Atos hydraulic valves
Atos hydraulic valvesDirectional, proportional, modular, and pressure and flow control valves, for subplate, in-line or cartridge mounting.
Atos hydraulic valves

Price and availability within 24 hours

Tell us the Atos code or the code of the valve to replace: a technician will reply within 24 working hours.

Richiedi prezzo e disponibilità

HYDRAULICS

Applications

  • Hydraulic Power Units
  • Hydraulic Presses
  • Plastic Presses
  • Bending Presses
  • Wind Energy
  • Die Casting
  • Metal Processing Plants

Atos hydraulic valves
available for immediate delivery

ATOS logo
Official distributors and Atos Service Center
Official distributors and Atos Service Center
12 months warranty
12 months warranty

Atos hydraulic valves description

Mechanical, hydraulic, and pneumatic actuation directional valves, DH and DK series.

The DHE series solenoid valves are spool-type, direct-acting valves, size 06, three or four ways, two or three positions, designed to operate in hydraulic systems. They can achieve flow rates of up to 80 l/min and pressures up to 350 bar.

The DKE solenoid valves are direct-acting valves, ISO 4401 size 10.

On the other hand, the DLEH and DLEHM series identify the spool-type, direct-acting solenoid valves, size 06, two or three ways, two positions, designed to operate in hydraulic circuits where leak-free sealing is required.

The DPHE solenoid valves (replacing the old DPHI, DPHU, and DPHO series) are two-stage, pilot-operated, ISO 4401 and can be sized 10, 16, 25, and 32.

Interfluid's highly specialized technicians provide continuous assistance in pre- and post-sales, liaising with the customer for component selection, developing customized solutions, and providing installation support.

Our know-how is constantly updated thanks to the close collaboration with Atos' Research and Development department.

Features

  • Available in sizes 06, 10, 16, 25, 32
  • Safety valves with proximity sensor
  • Designs with reduced leakage
  • Direct and pilot operated versions
  • Pressures up to 420 bar

Interfluid is a highly specialized partner in Atos proportional valve technology, both in analog and digital versions. We specialize particularly in proportional directional control valves, proportional pressure limiting valves, proportional pressure reducing valves, and proportional flow control valves.

Our technicians provide qualified technical support for comparing with competing brands, assembling alternative solutions for immediate delivery, or sizing based on your application.

Axis and P/Q Control Applications

Our technical department will provide specialized support in analyzing all the necessary requirements for sizing and commissioning axis and P/Q controls. This includes selecting the required drivers and software and supplying them to you.

  • Axis Control
  • Force Control
  • Pressure control

Features

  • Digital performance at analog prices
  • Open-loop or closed-loop operation
  • Wide range of fieldbus interfaces
  • P/Q control functions
  • TÜV-certified safety functions
  • Also available in explosion-proof version
  • Pressures up to 420 bar

Atos hydraulic pressure control valves are used to limit or reduce pressure in a hydraulic circuit. Atos hydraulic flow control valves are used to regulate the flow within the circuit. Interfluid stocks all types of modular Atos hydraulic valves:

  • high pressure valves series HMP, HM, KM
  • reducing valves series HG, KG, JPG
  • flow control valves HQ, KQ, and JPQ
  • modular, direct, or pilot-operated check valves series HR, KR, and JPR
  • pressure compensating valves series HC, KC
  • quick-slow control valves series DHQ

And Atos hydraulic valves available in versions for mounting on plates, threaded, or flanged.

  • Pressure control valves: screw-in mount valves, in-line valves, plate-mounted valves, and flanged valves series SP-CART – ARE – ARAM – AGAM
  • Pressure reduction and isolation valves series AGIR, AGIS, AGIU
  • Flow control valves: in-line mount and plate mount valves, compensated QV, AQFR
  • Check valves ADR – ADRL – AGRL / AGRLE
  • Pressure switches series MAP

Features

  • Modular valves available in sizes 06, 10, 16, 25
  • Pressures up to 350 bar

Alternative to:

  • Rexroth, Vickers, Duplomatic and Parker

Are you interested in these products?

Register to Fluid-Hub.net, the digital portal for our products.

Purchase directly online and get an additional 2% discount and many other benefits.

Technical data by series

The main Atos valve families with the maximum size, flow and pressure declared in the Atos technical tables. For flows and pressure drops at your operating conditions, the datasheet of the individual series prevails.

FamilySeriesMounting / sizeMax flow (l/min)Max pressure (bar)Atos datasheet
Directional spool valve, directDHEISO 4401 size 0680350E015
Directional spool valve, directDKEISO 4401 size 10150350E025
High-pressure directional valveDHEP / DKEPISO 4401 size 06 / 1080 / 150420E030, E035
Poppet directional valve, leak-freeDLEH / DLEHMISO 4401 size 0612 / 30350 / 315E045
Pilot-operated directional valveDPHEISO 4401 size 10, 16, 25, 32160 / 300 / 700 / 1,000350E085
Proportional directional valve, directDHZO-T / DKZOR-TISO 4401 size 06 – 1080 – 180350 (DHZO-T), 315 (DKZOR-T)F165
Proportional directional valve, pilot-operatedDPZO-TISO 4401 size 10 – 32180 – 1,600350F172
Proportional pilot-operated relief valveAGMZOISO 6264 size 10 – 32200 – 600350FS035
Proportional compensated flow control valveQVHZO / QVKZORISO 4401 size 06 / 1045 / 90210FS410
Modular relief valveHMP, HM / KMISO 4401 size 06 / 1035, 60 / 120350D120
Modular sequence valveHS / KSISO 4401 size 06 / 1040 / 80350 / 315D130
Modular pressure reducing valveHG, KG, JPGISO 4401 size 06, 10, 16, 2550 / 100 / 250 / 300350 (HG), 315 (KG, JPG)D140
Modular compensatorHC, KC, JPCISO 4401 size 06, 10, 1650 / 100 / 200350D150
Modular flow control valve (throttle)HQ, KQ, JPQISO 4401 size 06, 10, 16, 2580 / 160 / 200 / 300350 (HQ, JPQ), 315 (KQ)D160
Modular check valveHR, KR, JPRISO 4401 size 06, 10, 16, 2560 / 120 / 200 / 300350 (KR 315)D180
Subplate pilot-operated relief valveAGAMISO 6264 size 10, 20, 32200 – 600350C066
Subplate reducing / sequence / unloading valveAGIR / AGIS / AGIUISO 5781 size 10, 20, 32160–400 / 200–600 / 100–300350C070
Slip-in cartridgeSC LIISO 7368 size 16 – 100up to 9,000 (Δp 5 bar)420H003

Maximum values from Atos technical tables (www.atos.com, 2019–2026 editions). Max flow depends on configuration and spool: check the Q/Δp diagrams and the operating limits in the series datasheet.

Atos ex-proof valves for hazardous areas

For surface and mining plants with potentially explosive mixtures of gases, liquids or dusts, Atos offers ex-proof versions of its solenoid and proportional valves, multi-certified according to the main international schemes: ATEX, IECEx, EAC, CCC, PESO, cULus, MA and TIIS (availability depends on the product). Protection methods: Ex-d flameproof enclosure, Ex-t dustproof enclosure, Ex-i intrinsic safety and Ex-h constructional safety.

Ex-proof rangeClassificationMounting / sizeMax flowMax pressure
On-off solenoid valves, spool or poppetEx-d II 2G, Ex-t II 2D, Ex-d I M2 (mining)subplate ISO 06 – 321,000 l/min350 bar
Intrinsically safe on-off valvesEx-i II 1G, Ex-i I M1 (mining)subplate ISO 06 – 25700 l/min350 bar
Stainless steel on-off valvesEx-d II 2G, Ex-t II 2Dsubplate size 06 – 16220 l/min350 bar
Proportional directional valvesEx-d II 2G, Ex-t II 2D, Ex-d I M2 (mining)subplate ISO 06 – 321,500 l/min350 bar
Proportional directional cartridgesEx-d II 2G, Ex-t II 2D, Ex-d I M2 (mining)ISO 25 – 10016,000 l/min420 bar

Values from the Atos ex-proof electrohydraulics catalogue. Download it here: Atos ex-proof electrohydraulics catalogue (PDF). Tell us the zone classification and the certification you need: we check the right execution.

What to tell us in your request

  • Complete Atos code (e.g. DHE-0631-X 24DC) or the code of the valve to replace
  • ISO 4401 size and spool diagram or type
  • Coil voltage and connector type
  • Seal material (NBR, FKM)
  • For proportional valves: on-board or separate driver, fieldbus interface

Interfluid services on Atos valves

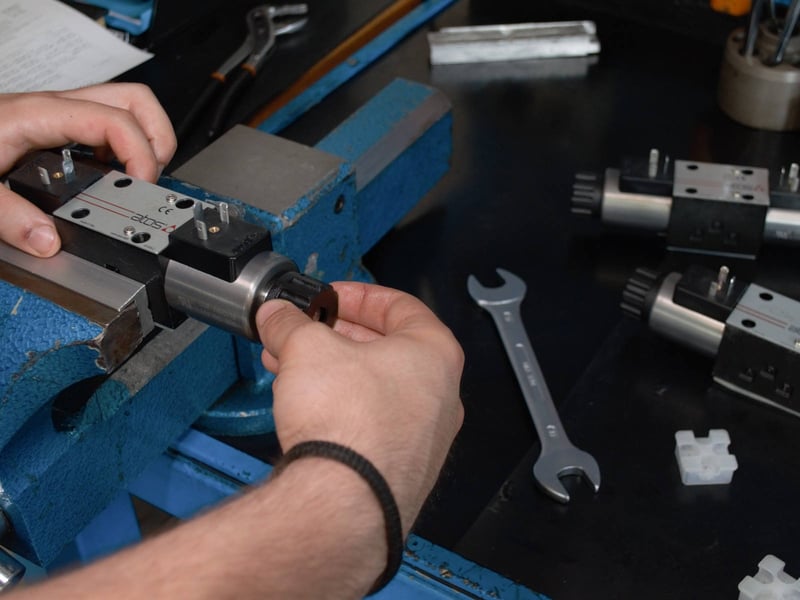

  • Authorised Service Center: reconditioning, inspection, repair and testing
  • Original Atos spare parts
  • Support on axis control, force control and P/Q, choice of drivers and software

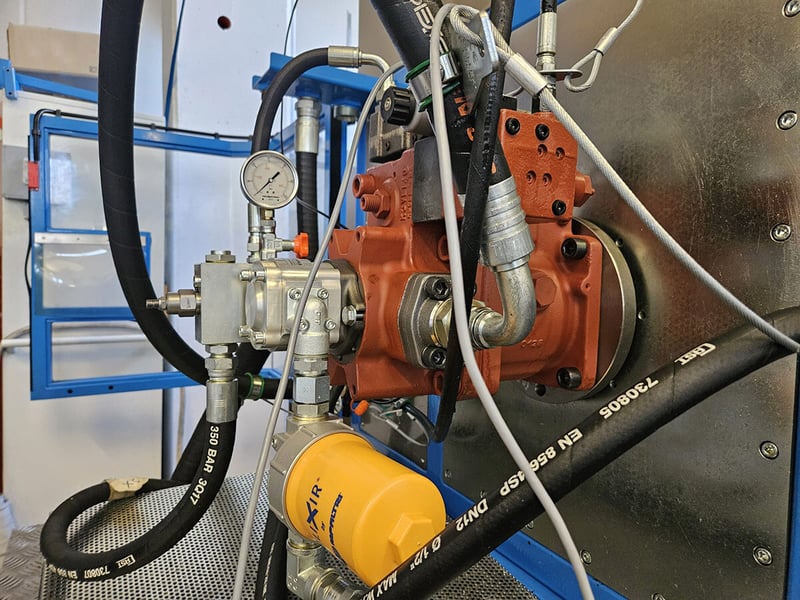

  • Testing and calibration on the test bench

Related Atos products and services

Choose the Atos valve you need and go directly to Fluid-Hub.net

SeriesAverage stockDiscover online availability
DHE✅ Usually availablefluid-hub.net_logo_colori
DKE✅ Usually availablefluid-hub.net_logo_colori
DLEH, DLEHM✅ Usually availablefluid-hub.net_logo_colori
DPHE✅ Usually availablefluid-hub.net_logo_colori
SeriesAverage stockDiscover online availability
AGMZO✅ Usually availablefluid-hub.net_logo_colori
DHZE-DKZE✅ Usually availablefluid-hub.net_logo_colori
DHZO-DKZOR✅ Usually availablefluid-hub.net_logo_colori
DLHZO-DLKZOR✅ Usually availablefluid-hub.net_logo_colori
DPZO✅ Usually availablefluid-hub.net_logo_colori
QVHZO✅ Usually available💬 Ask for availability
RZGO✅ Usually available💬 Ask for availability
RZMO✅ Usually availablefluid-hub.net_logo_colori
SeriesAverage stockDiscover online availability
HMP, HM, KM✅ Usually availablefluid-hub.net_logo_colori
HS, KS✅ Usually availablefluid-hub.net_logo_colori
HG, KG, JPG✅ Usually availablefluid-hub.net_logo_colori
HC, KC, JPC✅ Usually availablefluid-hub.net_logo_colori
HQ, KQ, JPQ✅ Usually availablefluid-hub.net_logo_colori
DHQ, DKQ✅ Usually available💬 Ask for availability
HR, KR, JPR✅ Usually availablefluid-hub.net_logo_colori
MAP✅ Usually availablefluid-hub.net_logo_colori

Already a registered customer? Check the stock of Atos valves on Fluid-Hub.net, with an extra 2% discount.

Frequently asked questions

What is the difference between DHE, DKE and DPHE?

DHE and DKE are direct-operated solenoid valves, ISO 4401 size 06 (up to 80 l/min) and size 10 (up to 150 l/min) respectively. DPHE are two-stage pilot-operated valves, sizes 10, 16, 25 and 32, up to 1,000 l/min; all up to 350 bar.

When do I need a DLEH poppet valve?

When the circuit requires leak-free sealing, for example to hold a load in position. DLEH reaches 12 l/min and 350 bar, DLEHM (three-way) 30 l/min and 315 bar, in size 06.

What data is needed to request an Atos valve?

Send us the Atos code or the data of the valve you use today: we check ISO 4401 size, spool diagram, voltage, connector and performance.

Do you repair Atos proportional valves?

Yes. Interfluid has been an authorised Atos Service Center since 2006: we recondition, inspect, repair and test Atos components, proportional valves included, with original spare parts.

Do you supply Atos ex-proof valves (ATEX, IECEx)?

Yes. Atos ex-proof solenoid and proportional valves are multi-certified (ATEX, IECEx, EAC, CCC, PESO, cULus, MA, TIIS depending on the product) with Ex-d, Ex-t and Ex-i protection, for surface and mining environments. Tell us the zone classification and the certification you need.

Are Atos solenoid valves in stock?

The main Atos solenoid valve series, DHE, DKE, DLEH and DPHE, are usually available from our warehouse, as are the main proportional and modular series. Send us the complete code to get price and availability within 24 working hours.

How long does it take to receive price and availability?

A technician will reply within 24 working hours.

Can't find the code you need?Send us the Atos code or the data of the valve you use today: we check size, diagram and coil and propose the correct valve.
