Air driven gas boosterIdeal for applications with air, nitrogen, helium, hydrogen, and oxygen
- Air driven gas boosters up to 25,000 psi (1,724 bar)
- Official HII distributors
- Warranty up to 12 months
- Price and availability within 24 hours
Prefer to talk to a technician? +39 0331 772410 · info@interfluid.net

Price and availability within 24 hours
Tell us the gas, the pressures and the flow rate: a technician will reply within 24 working hours.
High pressure
Applications
- Hydrogen and technical gases
- Testing at high pressures on valves, fittings, pipes, cylinders, tanks, etc.
- Leak testing with helium
- Mechanical seals
- Accumulator charging
- Tyre inflation
- Gas transfer
- Gas injection (foaming)
- Gas cylinder refilling
- Tri-mix charging

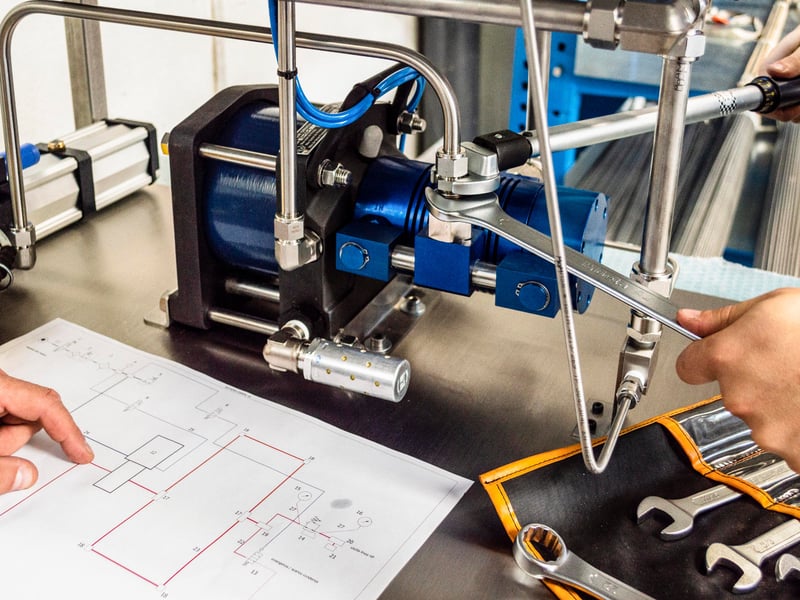

Air driven gas boosters description
Gas booster converts compressed air into high pressure up to 25,000 psi (1,724 bar) and is compatible with almost all gases, including air, nitrogen, helium, argon, hydrogen, oxygen, and natural gas.
The output pressure, controlled through a pressure regulator, is equal to the drive air pressure multiplied by gas Booster pressure ratio.
Once the pressure multiplier reaches the pre-set pressure it will automatically stall and maintain the pressure. In case of a pressure drop downstream, pump will automatically start and run until the set pressure is reached again.
Its operation makes it ideal for start-stop pressure applications.
Features
- Maximum working pressure: 25,000 psi (1,724 bar)
- Compatible with almost all gases
- Stainless steel body and check valves in contact with liquid
- Includes a separation spacer between the gas section and the pneumatic motor
- Operate with compressed drive air (gas) from 11 psi (0.8) bar to 150 psi (10 bar)
- Stall pressure adjustable
- Drive air lubrication is not required
- High-pressure section cooled through inter-stage intercooler
Advantages
- Maximum reliability and safety
- No electrical feed required
- Drive air lubrication is not required
- Possible to drive with other inert gases
- Outlet pressure is maintained without consuming any energy
- Automatic restart in case of pressure drop downstream
- Wide range of special modifications available
- Compact, lightweight, rugged, and weather proof
- Easy to incorporate and use
- Easy to incorporate automatic controls (PLC, proportional regulator)
Are you interested in this product?
Register to Fluid-Hub.net, the digital portal for our products.
Purchase directly online and get an extra 2% discount and many other benefits.
HII air driven gas boosters: series and technical data
High pressure air driven gas boosters from HII (Hydraulics International, Inc., Chatsworth, California), with no electrical connections. Interfluid is the HII distributor for Italy. Data from the HII catalogues GB500D, GB502B, GB503B, GB504A and GB505A.
| Series | Catalogue models | Max outlet | Drive air | Use stated in the catalogue |
|---|---|---|---|---|
| GB500D | 36 5G models, 1 to 2 stages | 25,000 psi | max 150 psi | Non-corrosive industrial and laboratory gases, with no oil in the gas section |
| GB502B | 7G-DS-7, 7G-TS-7, 7A-DS-8, 7LG-TS-7 | see HII data sheet | — | LG-TS versions for liquefied gases |
| GB503B | HIHPG complete systems | oxygen up to 5,000 psi | shop air max 150 psi | Diving, fire brigades, oxygen, paintball, aviation |
| GB504A | 3G-SS-20 | 3,450 psi (238 bar) | 150/12 psi (10/0.8 bar) | Portable unit, refill from storage down to 300 psi |
| GB505A | 3G-DS-29 | 9,000 psi (621 bar) | 150/12 psi (10/0.8 bar) | Oxygen and rebreather booster, from 400 psi |
GB500D series: single stage 5G models
| Model | Configuration | Area ratio | Stall pressure (formula) | Max inlet (psi) | Max outlet (psi) | Displacement (in³ per cycle) |
|---|---|---|---|---|---|---|
| 5G-SS-7 | Single acting, 1 stage | 7:1 | 7 × drive air | 2,500 | 2,500 | 13.20 |
| 5G-SS-14 | Single acting, 1 stage | 14:1 | 14 × drive air | 4,500 | 4,500 | 7.00 |
| 5G-SS-30 | Single acting, 1 stage | 30:1 | 30 × drive air | 9,000 | 9,000 | 3.10 |
| 5G-SS-50 | Single acting, 1 stage | 50:1 | 50 × drive air | 15,000 | 15,000 | 1.76 |
| 5G-SS-75 | Single acting, 1 stage | 75:1 | 75 × drive air | 25,000 | 25,000 | 1.20 |
| 5G-SD-60 | Single acting, dual drive, 1 stage | 60:1 | 60 × drive air | 9,000 | 9,000 | 3.10 |
| 5G-SD-100 | Single acting, dual drive, 1 stage | 100:1 | 100 × drive air | 15,000 | 15,000 | 1.76 |
| 5G-SD-150 | Single acting, dual drive, 1 stage | 150:1 | 150 × drive air | 25,000 | 25,000 | 1.20 |
| 5G-DS-4 | Double acting, 1 stage | 4:1 | (4 × drive air) + (1.00 × inlet) | 1,250 | 1,250 | 24.10 |
| 5G-DS-7 | Double acting, 1 stage | 7:1 | (7 × drive air) + (1.00 × inlet) | 2,500 | 2,500 | 26.40 |
| 5G-DS-14 | Double acting, 1 stage | 14:1 | (14 × drive air) + (1.00 × inlet) | 4,500 | 4,500 | 14.00 |
| 5G-DS-30 | Double acting, 1 stage | 30:1 | (30 × drive air) + (1.00 × inlet) | 9,000 | 9,000 | 6.20 |
| 5G-DS-50 | Double acting, 1 stage | 50:1 | (50 × drive air) + (1.00 × inlet) | 15,000 | 15,000 | 3.52 |
| 5G-DS-75 | Double acting, 1 stage | 75:1 | (75 × drive air) + (1.00 × inlet) | 25,000 | 25,000 | 2.40 |
| 5G-DD-14 | Double acting, dual drive, 1 stage | 14:1 | (14 × drive air) + (1.00 × inlet) | 2,500 | 2,500 | 26.40 |
| 5G-DD-28 | Double acting, dual drive, 1 stage | 28:1 | (28 × drive air) + (1.00 × inlet) | 4,500 | 4,500 | 14.00 |
| 5G-DD-60 | Double acting, dual drive, 1 stage | 60:1 | (60 × drive air) + (1.00 × inlet) | 9,000 | 9,000 | 6.20 |
| 5G-DD-100 | Double acting, dual drive, 1 stage | 100:1 | (100 × drive air) + (1.00 × inlet) | 15,000 | 15,000 | 3.52 |
| 5G-DD-150 | Double acting, dual drive, 1 stage | 150:1 | (150 × drive air) + (1.00 × inlet) | 25,000 | 25,000 | 2.40 |
The final number in the model code is the ratio between the air piston area and the gas piston area. Maximum safe pressures with a minimum safety factor of 4:1 on the strength of the exposed material; if the pressure can be exceeded by external sources a relief valve or rupture disc is required.
GB500D series: two stage 5G models
| Model | Configuration | Net ratio | Assist factor | Stall pressure (formula) | Max inlet (psi) | Max outlet (psi) |
|---|---|---|---|---|---|---|
| 5G-TS-4 | 2 stages, single drive | n/a | n/a | (4 × drive air) + (1.00 × inlet) | 1,250 | 1,250 |
| 5G-TS-7/14 | 2 stages, single drive | 14:1 | 2:1 | (14 × drive air) + (2.00 × inlet) | 2,500 | 4,500 |
| 5G-TS-7/30 | 2 stages, single drive | 9.13:1 | 4.29:1 | (30 × drive air) + (4.29 × inlet) | 2,500 | 9,000 |
| 5G-TS-14/30 | 2 stages, single drive | 26.25:1 | 2.14:1 | (30 × drive air) + (2.14 × inlet) | 4,500 | 9,000 |
| 5G-TS-14/50 | 2 stages, single drive | 19.44:1 | 3.57:1 | (50 × drive air) + (3.57 × inlet) | 4,500 | on request |
| 5G-TS-14/75 | 2 stages, single drive | 17.2:1 | 5.36:1 | (75 × drive air) + (5.36 × inlet) | 4,500 | 25,000 |
| 5G-TS-30/50 | 2 stages, single drive | 75:1 | 1.66:1 | (50 × drive air) + (1.66 × inlet) | 9,000 | 15,000 |
| 5G-TS-30/75 | 2 stages, single drive | 50:1 | 2.5:1 | (75 × drive air) + (2.50 × inlet) | 9,000 | 25,000 |
| 5G-TS-30/92 | 2 stages, single drive | 44.52:1 | 3.06:1 | (92 × drive air) + (3.06 × inlet) | 9,000 | 25,000 |
| 5G-TS-50/92 | 2 stages, single drive | 109.5:1 | 1.84:1 | (92 × drive air) + (1.84 × inlet) | 15,000 | 25,000 |
| 5G-TD-14/28 | 2 stages, dual drive | 28:1 | 2:1 | (28 × drive air) + (2.0 × inlet) | 2,500 | 4,500 |
| 5G-TD-14/60 | 2 stages, dual drive | 18.26:1 | 4.28:1 | (60 × drive air) + (4.28 × inlet) | 2,500 | 9,000 |
| 5G-TD-28/60 | 2 stages, dual drive | 52.5:1 | 2.14:1 | (60 × drive air) + (2.14 × inlet) | 4,500 | 9,000 |
| 5G-TD-28/100 | 2 stages, dual drive | 38.89:1 | 3.57:1 | (100 × drive air) + (3.57 × inlet) | 4,500 | 15,000 |
| 5G-TD-28/150 | 2 stages, dual drive | 34.4:1 | 5.36:1 | (150 × drive air) + (5.36 × inlet) | 4,500 | 25,000 |
| 5G-TD-60/100 | 2 stages, dual drive | 150:1 | 1.66:1 | (100 × drive air) + (1.66 × inlet) | 9,000 | 15,000 |
| 5G-TD-60/150 | 2 stages, dual drive | 100:1 | 2.5:1 | (150 × drive air) + (2.50 × inlet) | 9,000 | 25,000 |
On two stage models the maximum pressure allowed in the interstage stroke equals the maximum inlet pressure; the catalogue explains how to check whether an interstage relief valve is needed (interstage pressure = drive air × net ratio) and the possible interstage stall. For the maximum outlet value of the 5G-TS-14/50 contact us.
GB502B series: gases and liquefied gases
| Model | Configuration (HII nomenclature) |
|---|---|
| 7G-DS-7 | Double acting, single drive |
| 7G-TS-7 | Two stage |
| 7A-DS-8 | Double acting, single drive |
| 7LG-TS-7 | Two stage, LG version for liquefied gases |
Gas ports -8 SAE or -10 SAE depending on the model; drive air 3/4" NPT with 1 1/4" NPT exhaust (one model with -8 SAE inlet and 1/2" NPT exhaust). With liquefied gases the catalogue says to reduce the drive speed to 30-35 cycles/min: maximum flow about 2.7 GPM up to 500 psi and 1.5 GPM up to 300 psi in the two LG-TS models, varying with ambient temperature and vapour pressure. For the pressure rating of individual models see the HII data sheet or contact us.
GB503B series: HIHPG complete systems
| System | Application | Catalogue data |
|---|---|---|
| HIHPG3-27003 | Fire brigades, SCBA filling | Single stage, double acting, complete system |
| HIHPG4-20149 | Dive shops and boats | Two stage, panel in a watertight enclosure, Nitrox partial pressure mixing, air up to 3,500 psi |
| HIHPG3-20109 | Paintball, nitrogen | Nitrogen up to 4,500 psi from cylinders |
| HIHPG3-20147 | Paintball, air | Two stage, from air at 100 psi up to 4,500 psi; air to be dried to -50 °F dew point or better |
| Pump 30046 | Liquid CO2 transfer | Air driven pump for liquid CO2 with weight control |
Oxygen systems: they transfer and compress pure oxygen up to 5,000 psi from cylinders (two stage: down to residual cylinders at 200 psi; single stage: down to 350 psi), driven by shop air up to 150 psi, or by high pressure compressed air (single stage, up to 6,000 psi). For SCBA at 4,500 psi the systems work from storage up to 6,000 psi, even when it falls to 750 psi.
GB504A series: 3G-SS-20 compact booster
| Data | 3G-SS-20 |
|---|---|
| Ratio | 23:1 |
| Max outlet pressure | 3,450 psi (238 bar) |
| Max/min drive air | 150/12 psi (10/0.8 bar) |
| Refill from storage | from 300 psi (20 bar) |
| Booster dimensions | 12.05 L × 4.9 D × 3.4 H in |
| Weight | 11.6 lb (5.2 kg) |
| Connections | Air 1/4" NPTF; gas inlet and outlet 3/8" JIC female (9/16" × 18); exhaust 1/4" NPTF; remote pilot 1/8" NPTF |
3G-SS-20 fill times
| Pressure after equalisation (psi) | Fill time | Flow (scfm) |
|---|---|---|
| 2,000 (138 bar) | 1.0 minutes | 3.0 |
| 1,500 (103 bar) | 3.1 minutes | 2.3 |
| 1,000 (69 bar) | 7.3 minutes | 1.5 |
| 500 (34 bar) | 20 minutes | 0.8 |
19 ft³ (0.54 m³) O2 cylinder up to 2,400 psi (165 bar), with shop air at 105 psi and 60 cycles/min. Do not exceed a transfer rate of 200 psi/min for pure oxygen and 50-70 psi/min when mixing.
GB505A series: 3G-DS-29 oxygen and rebreather booster
| Data | 3G-DS-29 |
|---|---|
| Ratio | 29:1 |
| Max outlet pressure | 9,000 psi (621 bar) |
| Boost range stated | from 400 psi (28 bar) up to 5,000 psi (345 bar) |
| Max/min drive air | 150/12 psi (10/0.8 bar) |
| Booster dimensions | 18 L × 4.75 D × 8 H in |
| Weight | 18 lb (8.1 kg) |
| Connections | Air 1/8" NPTF; gas inlet and outlet -4 SAE (7/16" × 20); exhaust 1/4" NPTF; remote pilot 1/8" NPTF |
3G-DS-29 fill times
| Pressure after equalisation (psi) | Fill time | Flow (scfm) |
|---|---|---|
| 2,000 (138 bar) | 53 seconds | 7.1 |
| 1,500 (103 bar) | 106 seconds | 5.3 |
| 1,000 (69 bar) | 211 seconds | 3.6 |
| 500 (34 bar) | 520 seconds | 1.8 |
19 ft³ (0.54 m³) O2 cylinder up to 3,000 psi (207 bar), with shop air at 100 psi and 80 cycles/min. Same oxygen transfer rate limits as above.
Catalogue features
- Compressed air operation, no electrical connections or external cooling (GB500D)
- Intrinsically safe: compressed air reduces the risk of heat, flame, sparks or shocks (GB504A, GB505A)
- Gas section with no lubrication: pistons on PTFE dynamic seals, drive air lubrication not required (GB500D)
- Separation between air section and gas section with three seals and a double vent
- They hold pressure without consuming energy and restart under load (GB504A, GB505A)
Options and materials
- Option N: lapped cycle valve for continuous duty
- Option O: oxygen service up to 5,000 psi, HII testing with high pressure oxygen, not available on -4 models; mount horizontally and do not use other gases
- Option V: Viton seals in the air section, for air containing hydrogen sulphide or certain synthetic compressor lubricants
- Option X: external 1/4" SAE Boss pilot port for start/stop of the drive air
- Internal gas section parts exposed to the gas in stainless steel, bronze, PTFE and Viton, hydrocarbon free (GB500D)
- Max drive air 150 psi on all 5G models, 1/2" SAE Boss port; sizes from 17 × 10 × 10 in (23 lb) to 33 × 10 × 10 in (55 lb)
Frequently asked questions
What is the difference between the GB500, GB502, GB503, GB504 and GB505 series?
GB500D is the 5G range with 36 single and two stage models up to 25,000 psi. GB502B covers the versions for gases and liquefied gases, GB503B the complete systems for diving, fire fighting, oxygen and paintball. GB504A (3G-SS-20, 3,450 psi) and GB505A (3G-DS-29, 9,000 psi) are compact boosters with a watertight enclosure.
Which gases can be compressed?
The GB500D catalogue states that HII boosters compress practically any non-corrosive industrial or laboratory gas, and lists argon, carbon dioxide, helium, hydrogen, neon, nitrogen, nitrous oxide, oxygen and breathing air among the gases that require purity. It does not declare a model dedicated to hydrogen: tell us the gas, the pressures and the flow rate and we will check.
Can it be used with oxygen?
Yes, with option O the 5G boosters are tested by HII for pure oxygen up to 5,000 psi (not available on -4 models). Boosters configured this way must not be used with other gases. The 3G-DS-29 is the HII booster for oxygen and rebreathers.
Is lubricated air needed?
No, drive air lubrication is not required. The gas section works without oil, with pistons on PTFE seals cooled by the exhaust air.
How do I choose the model?
Start from inlet pressure, outlet pressure and flow rate. The catalogue gives the compression ratio as the main factor for volumetric efficiency; for high flow rates two boosters can be used in series. Send us the data and we will propose the model.
See also: air driven gas boosters, gas booster power units and test units and the rental of pressure testing units.
Can't find the model you need?Send us the gas, the inlet and outlet pressure and the flow rate: a technician will reply within 24 working hours.
Request price and availabilityChoose the air driven gas booster you need and go directly to Fluid-Hub.net
| Series | Average stock | Discover online availability |
|---|---|---|
| 3G-SS | ✅ Usually available | 💬 Ask for availability |
| 5G-SS | ✅ Usually available | 💬 Ask for availability |
| 5G-SD | 🚚 Orderable from the supplier | 💬 Ask for availability |
| 5G-DS | 🚚 Orderable from the supplier | 💬 Ask for availability |
| 5G-DD | 🚚 Orderable from the supplier | 💬 Ask for availability |
| 5G-TS | ✅ Usually available | 💬 Ask for availability |
| 5G-TD | 🚚 Orderable from the supplier | 💬 Ask for availability |
| 7G-DS | 🚚 Orderable from the supplier | 💬 Ask for availability |
| 7G-TS | 🚚 Orderable from the supplier | 💬 Ask for availability |
Download
- HII air driven gas booster catalogue - Model 3G-SS-20Download HII air driven gas booster catalogue - Model 3G-SS-20
- HII air driven gas booster catalogue - Model GB500DDownload HII air driven gas booster catalogue - Model GB500D
- HII air driven gas booster catalogue - Model GB502B-1Download HII air driven gas booster catalogue - Model GB502B-1
- HII hydrogen powered air driven gas booster catalogueDownload HII hydrogen powered air driven gas booster catalogue
